BALL VALVES

A Ball valve is a quarter-turn rotational motion valve that uses a ball-shaped disk to stop or start flow. If the valve is opened, the ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet. If the valve is closed, the ball is rotated so that the hole is perpendicular to the flow openings of the valve body and the flow is stopped.

BALL VALVES

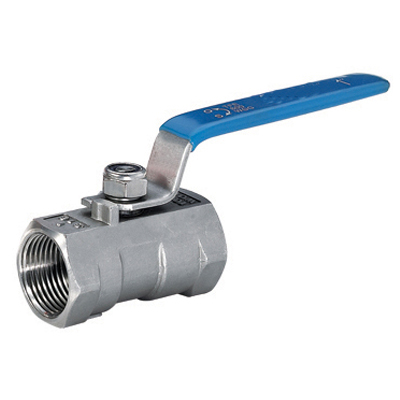

1 Piece Ball Valves

Product Features:

Materials: Stainless steel – A351 CF8M (SS 316).CF8(SS 304).

Carbon Steel: A216 WCB. A108.

Design: ANSI/ASME B16.34.

Investment Casting Body. A108 Bar Stock

Threads: ASME B 1.20.1, BS21, DIN 2999/259, ISO 228/1

CE Marketing Available.

Test and Inception: API 598

Suitable Medium: water, oil, air and some corrosive liquids

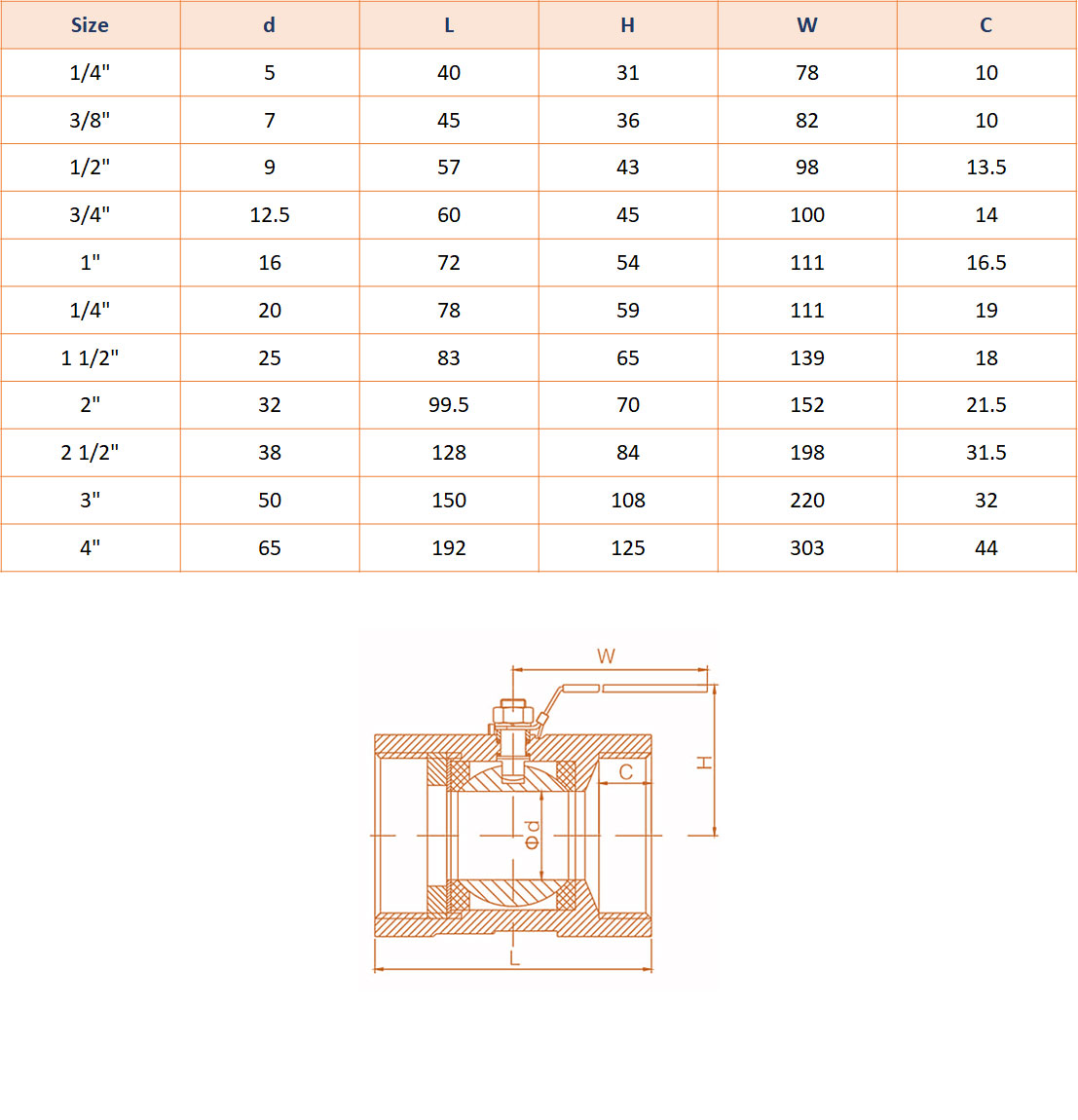

PRODUCT DIMENSIONS

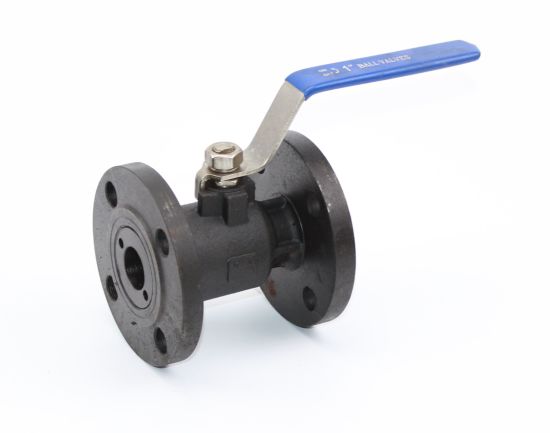

1 Piece fLANGED Ball Valves

Product Features:

Materials: CF8M, WCB

Investment Casting Body.

Blow-out proof stem

Live-loading design

Anti-static device

ISO 5211 Direct Mounting pad

API 607 Fire safe approved

API 608 Design

Suitable Medium: Water, oil, air and some corrosive liquids.

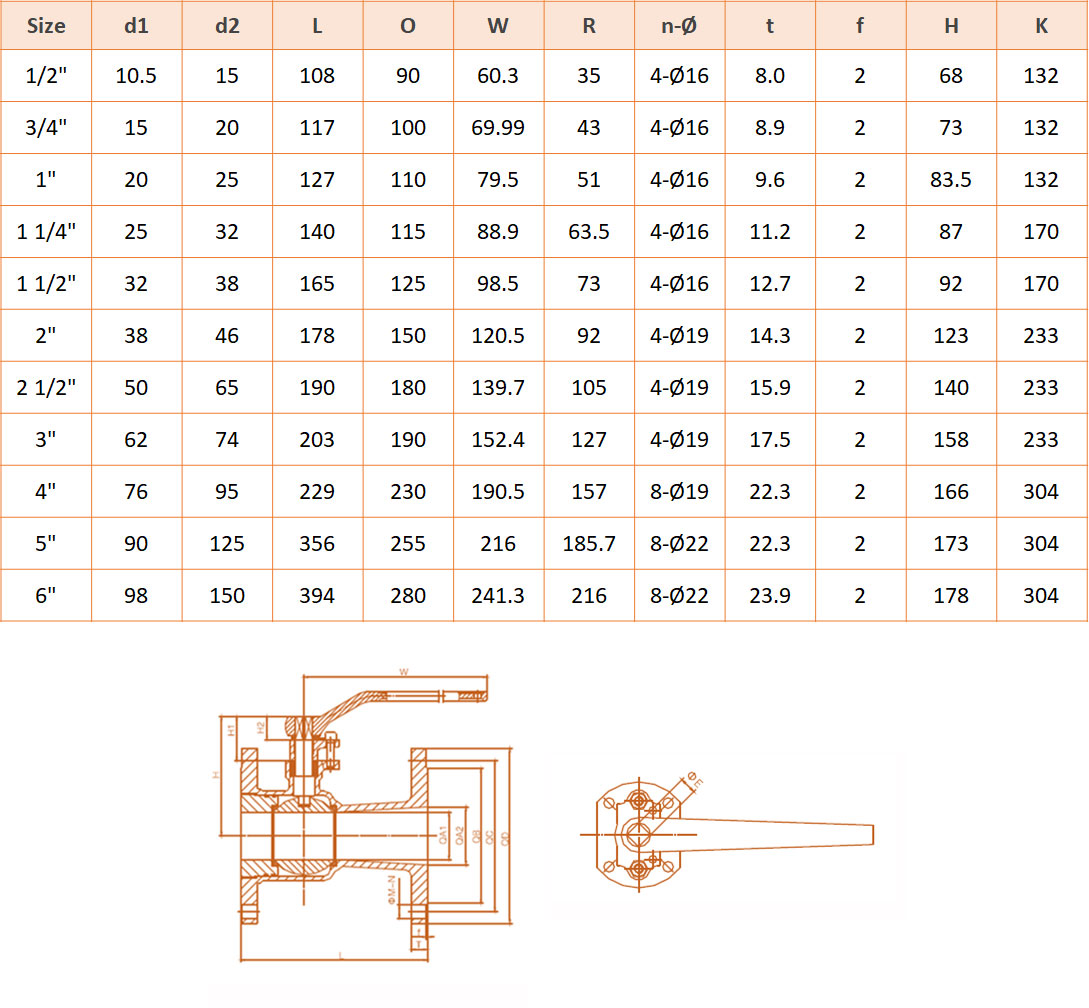

PRODUCT DIMENSIONS

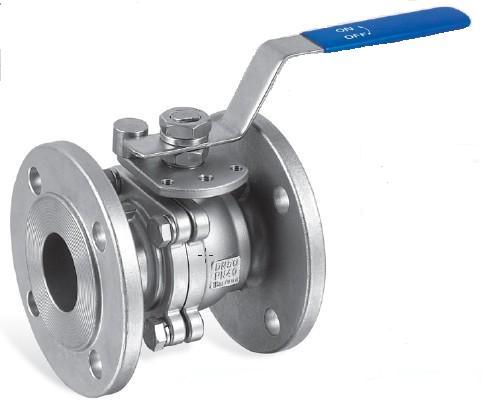

2 Piece fLANGED Ball Valves

Product Features:

Materials: CF8M,WCB.

Investment Casting Body.

Investment casting

Blow-out proof stem

Anti-static device (option)

Locking device

ISO 5211 Mounting pad

API 607 Fire safe approved

Flange dimension : ASME B16.5

Face to face: ASME B16.10

Suitable Medium: water, oil, air and some corrosive liquids.

PRODUCT DIMENSIONS

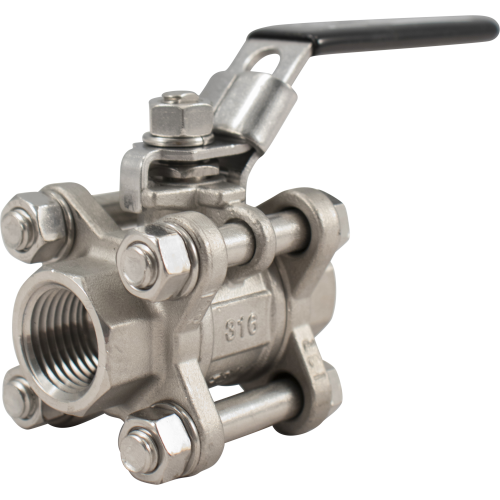

3 Piece Ball Valve BSP

Product Features:

Size: 1/4″ – 4″

Materials: ASTM CF8M ,WCB.

Investment Casting Body.

Blow-out proof stem

Anit-static device (option)

Locking device

Iso Pad/ Non Iso Pad

Bsp / Bw / Sw Ends

With Lever, Pneumatic /Electric actuator operated

Suitable Medium: water, oil, air and some corrosive liquids

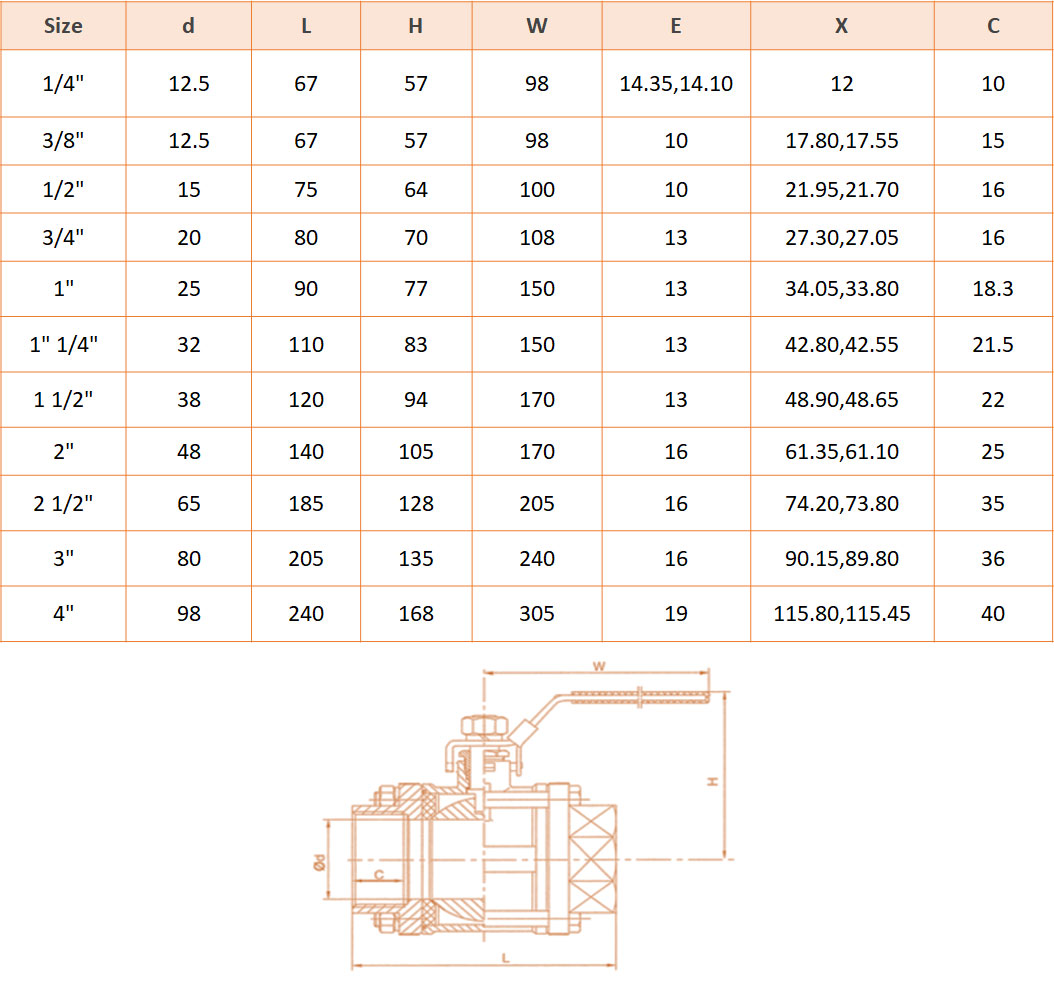

PRODUCT DIMENSIONS
