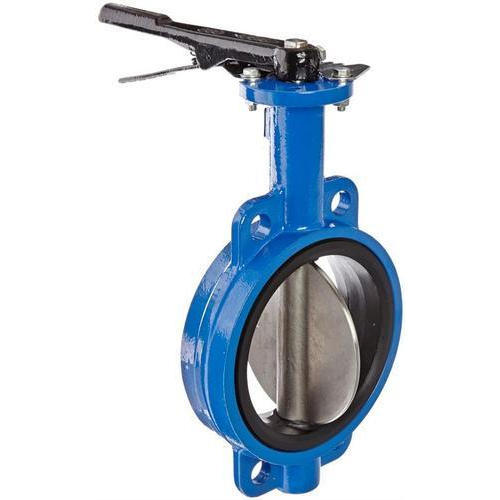

BUTTERFLY VALVES

A Butterfly valve is a quarter-turn rotational motion valve, that is used to stop, regulate, and start flow. A butterfly valve has a disc which is mounted on a rotating shaft. When the butterfly valve is fully closed, the disk completely blocks the line. When the butterfly valve is fully opened, the disc is at a right angle to the flow of gas or liquid.

BUTTERFLY VALVES

BUTTERFLY VALVES

Product Features:

Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Zero Leakage
Bi-Directional
Low Torque,long life cycle
360°polished disc assures positive on-off
Epoxy coated body,smooth surface
Various kinds of materials,applicable to different medium

PRODUCT DIMENSIONS
