GATE VALVES

A gate valve, also known as a sluice valve, is a valve that opens by lifting a barrier (gate) out of the path of the fluid. Gate valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened. The gate faces can be parallel but are most commonly wedge-shaped (in order to be able to apply pressure on the sealing surface).

GATE VALVES

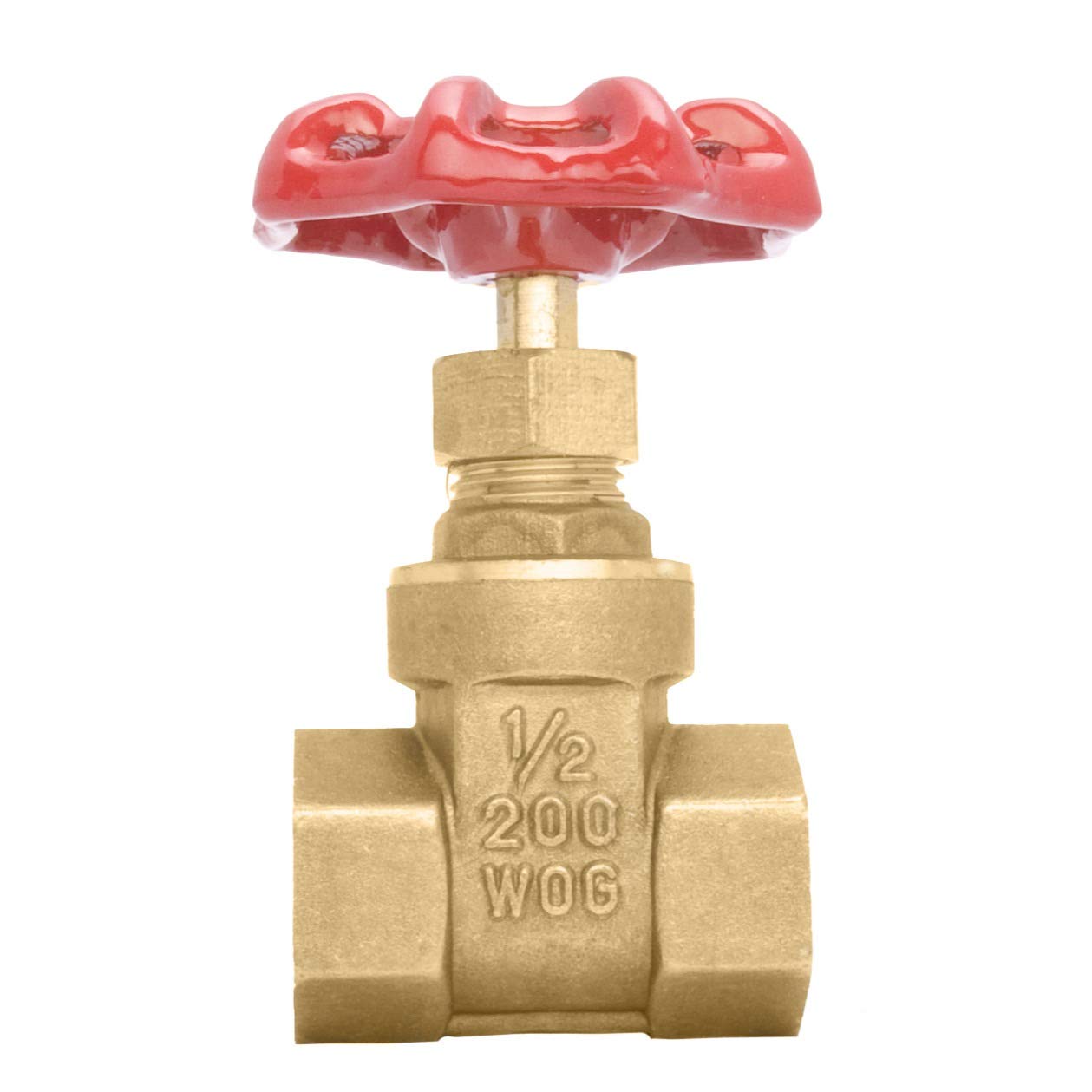

BRASS GATE VALVE

Product Features:

Female/female threads.
Handle in aluminium.
Body in brass.

Bsp Ends
Minimum and maximum working temperatures: 0°C, 150°C in absence of steam.

Suitable for domestic water services, heating, air-conditioning plants.

PRODUCT DIMENSIONS

STAINLESS STEEL / CAST STEEL GATE VALVE

Product Features:



Materials: ASTM A351 CF8M , WCB

Design and Manufacture accord to API603

Face to Face:ASME B16.10

Flange ends compiled with ASME B16.5

Inspection and tested accord to API598

PRODUCT DIMENSIONS

FORGED STEEL GATE VALVE

Product Features:



Material: ASTM A105, ASTM A182 F304, F316

Outside Screwed and Yoke

Bolted Bonnet

API Standard 602

Face-to-Face: ANSI B16.10

Ends: ANSI B16.11

Test and Inspection: API598



PRODUCT DIMENSIONS

KNIFE GATE VALVE

Product Features:



Size:2″~48″(DN50~DN1800)

Pressure:0.6mpa-1.6mpa

Body Materials:Stainless steel/ductile iron/cast steel

Type:Non-rising Stem

Connection:Flange

Temperature:-29-200℃

Seal Materials:EPDM/NBR

Drive type:handle,pneumatic,electric



PRODUCT DIMENSIONS
