CHECK VALVES

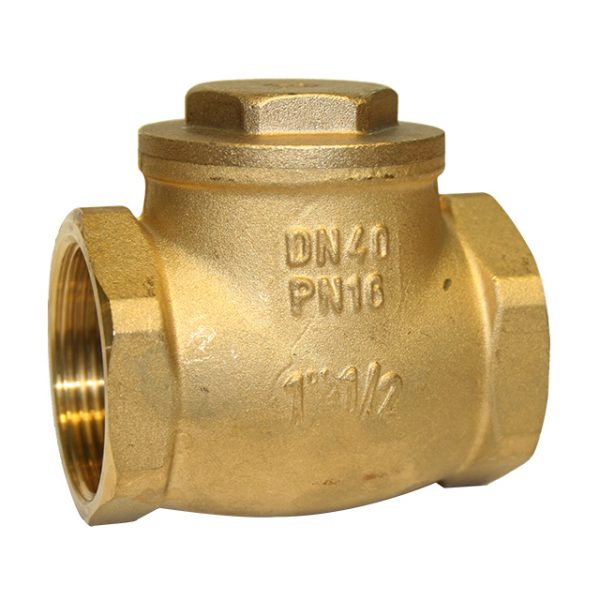

BRASS SWING CHECK
Product Features:
Body in brass
Bsp Ends
O-ring for upper plug in NBR
O-ring of the side plug in NBR
Plate in brass
Minimum and maximum working temperatures: 0°C, 90°C
PRODUCT DIMENSIONS

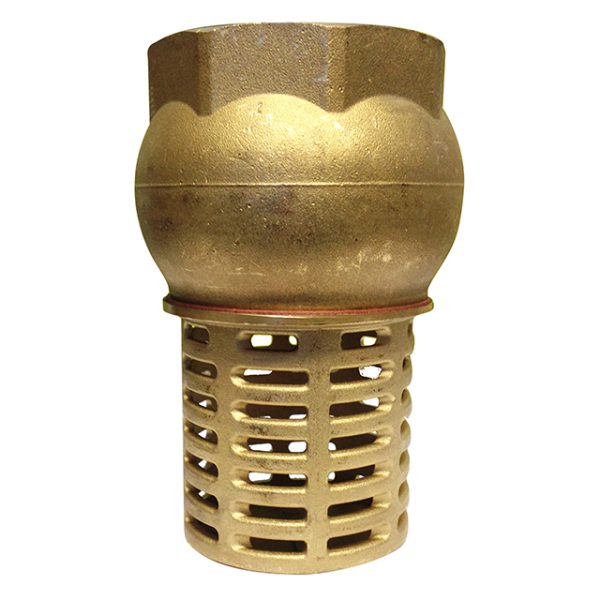

BRASS FOOT VALVE
Product Features:
Body and strainer in brass
Strainer washer in fibre
Plate in brass
Washer in NBR
Minimum and maximum working temperatures: 0°C, 90°C
Thread: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
PRODUCT DIMENSIONS
SWING CHECK FLANGED
Product Features:
Body material: carbon steel, stainless steel
Nominal diameter: 2″～42″
Pressure range:Class150～2500
End connection: RF, RTJ, BW
Working temperature:-196℃～+560℃
Standards:
Design and manufacture: BS 1868, API 6D, ASME B16.34
Face to face/end to end: ASME B16.10, API 6D, DIN 3202
Pressure temperature rating: ASME B16.34
BW end dimension: ASME B16.25
End flange dimension: ASME B16.5, ASME B16.47
Inspection and test: ISO 5208, API 598
PRODUCT DIMENSIONS
SWING CHECK BSP
Product Features:
Size: 1/4″ – 4
Material: ASTM A351 CF8M
Investment casting body
Working Pressure: 200WOG
Suitable Medium: water, oil, air and some corrosive liquids.
PRODUCT DIMENSIONS
WAFER CHECK
Product Features:
Design and Manufacture accord to ANSI B16.34
Material: ASTM A351 CF8M / Bronze
Face to Face: DIN3202-K4
Flange ends compiled with DIN2635;
Inception and tested accord to API598
PRODUCT DIMENSIONS

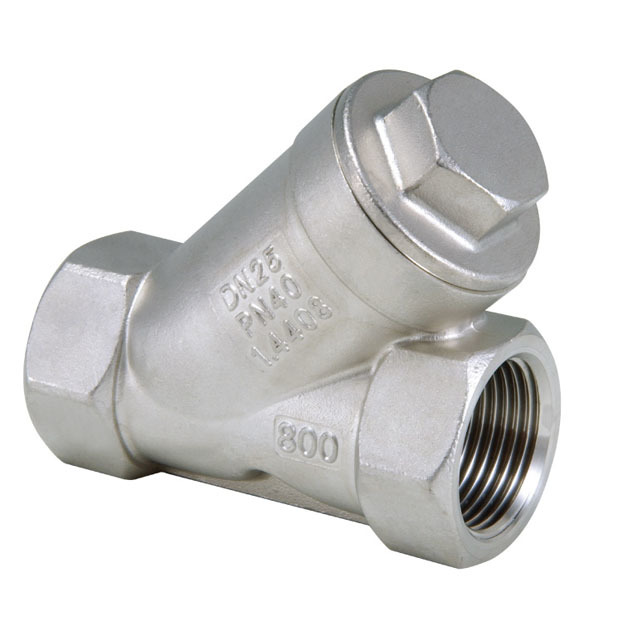

Y-CHECK VALVE
Product Features:
Materials: ASTM A351 CF8M / CF8, A216 WCB
Investment Casting Body
Working Preasure: 800WOG
Suitable Medium: water, oil, air and some corrosive liquids.
PRODUCT DIMENSIONS
